Manguera corrugada de succión y descarga

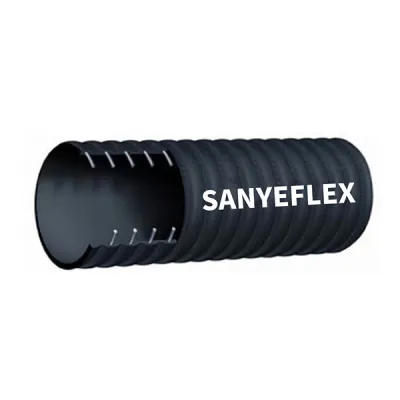

Corrugated Suction & Discharge Hose

Tube: Black blended rubber
Reinforcement: High tensile textile cords with embedded steel helix wire
Cover: Black corrugated abrasion and weather resistant synthetic blend

Temperature: -30°C + 80°C(-20°F to +180°F)
Application: water/oil suction and delivery, used in construction industries & agriculture

Specification

Hose I.DHose O.DWorking PressureBurst Pressure
mminchmmbarpsibarpsi
251341015030450
321 1/4421015030450
381 1/2481015030450
512621015030450
642 1/2741015030450
763881015030450
893 1/21031015030450
10241161015030450
12751421015030450
15261681015030450
20382231015030450
254102801015030450

Productos relacionados

  • Dredging Hose

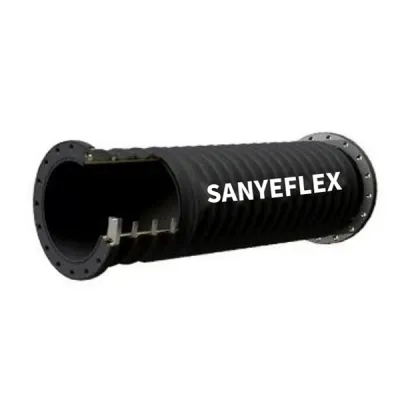

    Dredging Hose

    Reinforcement: Multiple layers of high tensile reinforcing materials with outstanding resistance to fatigue. Fully embedded steel wire coils are incorporated to achieve kink, crush, and local load resistance.
  • Sandblast Hose

    Sandblast Hose

    Tube: Black conductive NR, abrasion-resistant
    Reinforcement: High tensile textile cords
    Cover: Black conductive SBR/NR, abrasion and ozone resistant
    Temperature: -30°C + 80°C
  • LPG Hose

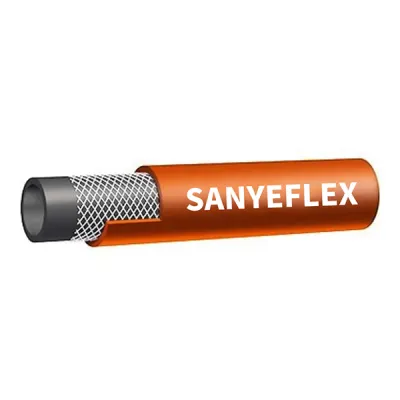

    LPG Hose

    Tube: NBR, black, smooth
    Reinforcement: High tensile textile cords
    Cover: Orange EPDM/SBR blended, weather and ozone resistant
    Temperature: -40℃to~+90℃
  • Corrugated Suction & Discharge Hose

    Corrugated Suction & Discharge Hose

    Tube: Black blended rubber
    Reinforcement: High tensile textile cords with embedded steel helix wire
    Cover: Black corrugated abrasion and weather resistant synthetic blend
    Temperature: -30°C + 80°C(-20°F to +180°F)
  • SAE 100 R14 PTFE HOSE

    SAE 100 R14 PTFE HOSE

    INNER TUBE: high temperature resistant and chemical corrosion resistant PTFE material
    COVER: stainless steel wire braid
    TEMPERATURE RANGE: -60℃ to +260℃
  • Oil / Fuel Hose (Surface cover)

    Oil / Fuel Hose (Surface cover)

    Tube: NBR synthetic rubber, black, smooth
    Reinforcement: high tensile textile cords
    Cover: black Neoprene rubber, smooth, oil, ozone, weather, abrasion resistant
    Temperature: -30°C + 80°C
  • Oil / Fuel Hose (Wrapped cover)

    Oil / Fuel Hose (Wrapped cover)

    Tube: NBR synthetic rubber, black, smooth
    Reinforcement: High tensile textile cords
    Cover: black Neoprene rubber, wrapped, oil, ozone, weather, abrasion-resistant
    Temperature: -30°C + 80°C
