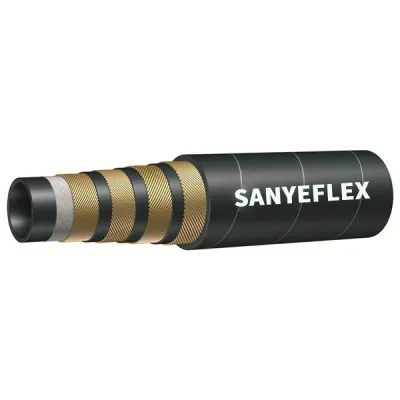

SAE 100 R15 Super Flexible Series Spiral Hydraulic Hose
Wrapped cover/ Smooth cover
Inner tube: Excellent oil 、High temperature resistant rubber.
Reinforcement: 4 or 6 layers of high tensile copper-coated steel wire Spiral.
Cover: Abrasion and anti-aging synthetic rubber.
Temperature range: -40℃ to +125℃.
Application: For the delivery of petroleum based hydraulic oil.
Specification
| TYPE | DASH | I.D. | W.D. | O.D. | W.P. | B.P. | Min B.R | Weight | |||
| - | Inch | mm | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m | |
| SY15S-19B/G | 12 | 3/4 | 19 | 28 | 31.5 | 42 | 6000 | 168.0 | 24000 | 200 | 1.59 |
| SY15S-25B/G | 16 | 1 | 25 | 34.4 | 37.5 | 42.0 | 6000 | 168.0 | 24000 | 250 | 2.08 |
| SY15S-32B | 20 | 1-1/4 | 31.5 | 45.6 | 48.3 | 42.0 | 6000 | 168.0 | 24000 | 250 | 3.78 |
| SY15S-38B | 24 | 1-1/2 | 38.0 | 53.1 | 55.8 | 42.0 | 6000 | 168.0 | 24000 | 305 | 5.32 |

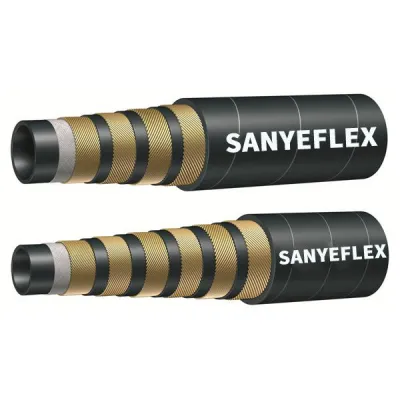

SAE 100 R15 (Wrapped Cover / Smooth Cover)
