Manguera hidráulica trenzada de alambre

SAE 100 R16 (Wrapped Cover / Smooth Cover)

Structure: it is composed of three parts: tube, reinforcement and cover.

Tube: black synthetic rubber, which is resistant to oil, abrasion and corrosion.

Reinforcement: one layer or two layers of high tensile braided steel wire, making the hose work well in high pressure working conditions.

Cover: high quality synthetic rubber, making the hose resistant to abrasion, corrosion, cut, weather, ozone, aging and sunlight.

Working temperature: -40 °C to +100 °C.

APPLICATIONS: Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.

Specification

Specification

DN

HOSE ID

Hose OD

Working Pressure

Burst Pressure

Minimum Bend Radius

Weight

InchmmmmMPaPsiMPaPsimmkg/m
61/46.413.434.5500013820000500.27
85/167.915.029.3425011717000550.35
103/89.517.427.5400011016000650.42
131/212.720.624.035009614000900.52
165/815.923.819.0275076110001000.63
193/419.027.815.522506290001200.81
25125.435.913.820005580001501.17
321-1/431.843.611.216254565002101.49

SAE 100 R16

SAE 100 R16 steel wire reinforced hydraulic hose is suitable for connecting hydraulic equipment in narrow installation space, because it has smaller bending radius and outside diameter. It is composed of three parts: tube, reinforcement and cover. The tube is made from black oil resistant synthetic rubber, making it have excellent performance in delivering oils. The reinforcement is designed of one layer or two layers of braided steel wire, which is highly resistant to high pressure. The cover is made from weather resistant synthetic rubber, making the hose resistant to weather, ozone, aging, abrasion, corrosion and cut.


Productos relacionados

  • SAE 100R7

    SAE 100R7

    STRUCTURE AND CAPABILITY: This kind of hose is made of inner tube (Nylon, reinforcement (High Pressure Synthetic Fiber), and cover (High Flexibility Nylon or Thermoplastic). It is light weight.
  • SAE 100R8

    SAE 100R8

    STRUCTURE AND CAPABILITY: This kind of hose is made of inner tube (Nylon, reinforcement (High Pressure Synthetic Fiber), and cover (High Flexibility Nylon or Thermoplastic). It is light weight.
  • SAE 100 R14 PTFE HOSE

    SAE 100 R14 PTFE HOSE

    INNER TUBE: high temperature resistant and chemical corrosion resistant PTFE material
    COVER: stainless steel wire braid
    TEMPERATURE RANGE: -60℃ to +260℃

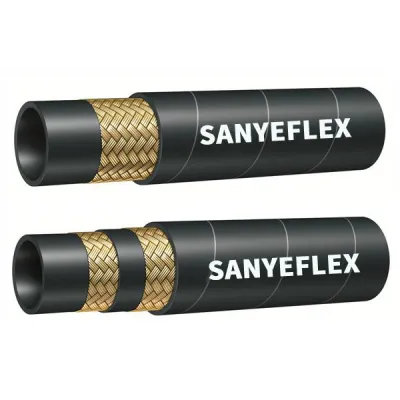

  • SAE 100 R17 (Wrapped Cover / Smooth Cover)

    SAE 100 R17 (Wrapped Cover / Smooth Cover)

    SAE 100 R17 hydraulic hose is suitable for some equipment whose installation space is compact and narrow, because it has smaller bending radius and outside diameter. It is composed of three parts: tube, reinforcement and cover. The tube is made from black oil resistant synthetic rubber, making the hose widely used in delivering oils.

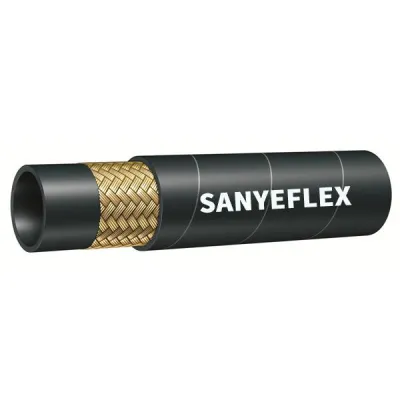

  • SAE 100R5 (Wrapped Cover / Smooth Cover)
